48V 200ah lifepo4 >6000 cycles lithium phosphate battery

10kwh 48v lithium phosphate lifepo4 battery factory price

Model	ES-10.24L
Total Energy [kWh]	10.24
Capacity [Ah]	200
Nominal Voltage [V]	51.2
Voltage Range [M]	48V-51.2
MAX.Charge & Discharge Current[A]	80
Dimension[W×DxH,mm]	610×160×800
Net Weight [Kg]	72

Introduction Specification ES-10.24L Detial System connect

Introduction

48V 200ah LiFePO4 Battery

95% DOD with More Usable Capacity

>6000 cycles Reliable Performance

Compatible with most of available solar inverters

Support CAN&RS485 Communication

Wall mounted lithium battery is mainly for home energy stoarge solutions

Specification

Model	ES-5.12L	ES-10.24L	ES-15.36L
Total Energy [kWh]	5.12	10.24	15.36
Capacity [Ah]	200	200	300
Nominal Voltage [V]	25.6	51.2	51.2
Voltage Range [V]	21-28.8	48-57.6	48-57.6
MAX. Charge & Discharge Current [A]	50	80	120
Peak Charge & Discharge Current [A] (for 10 sec.)	80	120	150
Dimension [W x D x H, mm]	220270550	610×160×800	577680280
Net Weight [Kg]	34	72	110
Scalable	1~16 in parallel
Communication	CAN,RS485
Communicated Inverter	GOODWE / Victron / SOFAR / Deye / Growatt / Solis / SMA / SRNE
Enclosure Protection Rating	IP21
Working Temperature Range [℃]	-10 ~ 50
Cycle Life	＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL
Warranty	5 years
Certification	IEC62619,UN38.3,CE

ES-10.24L Detial

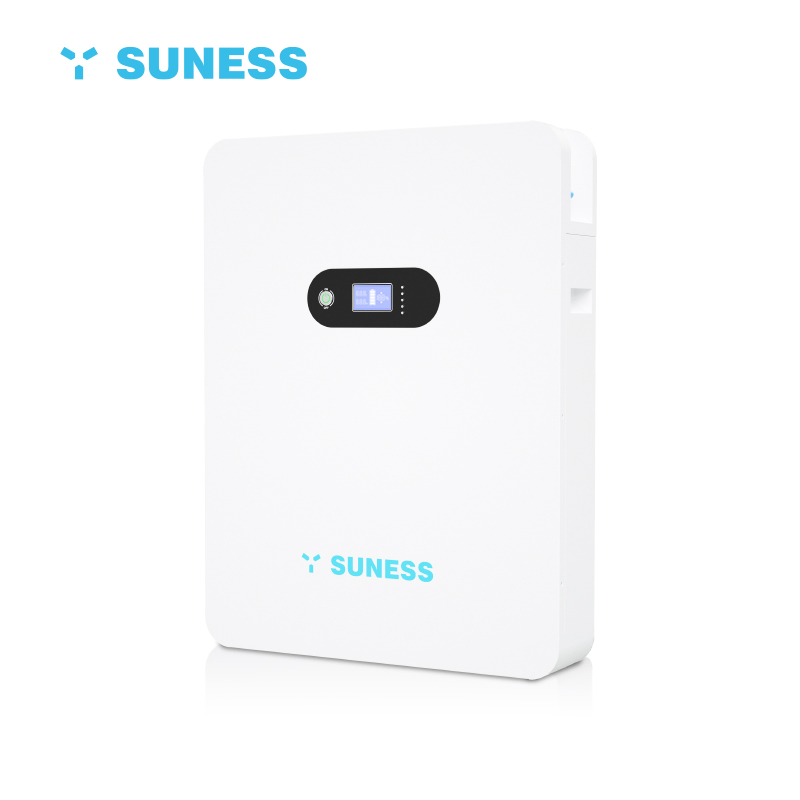

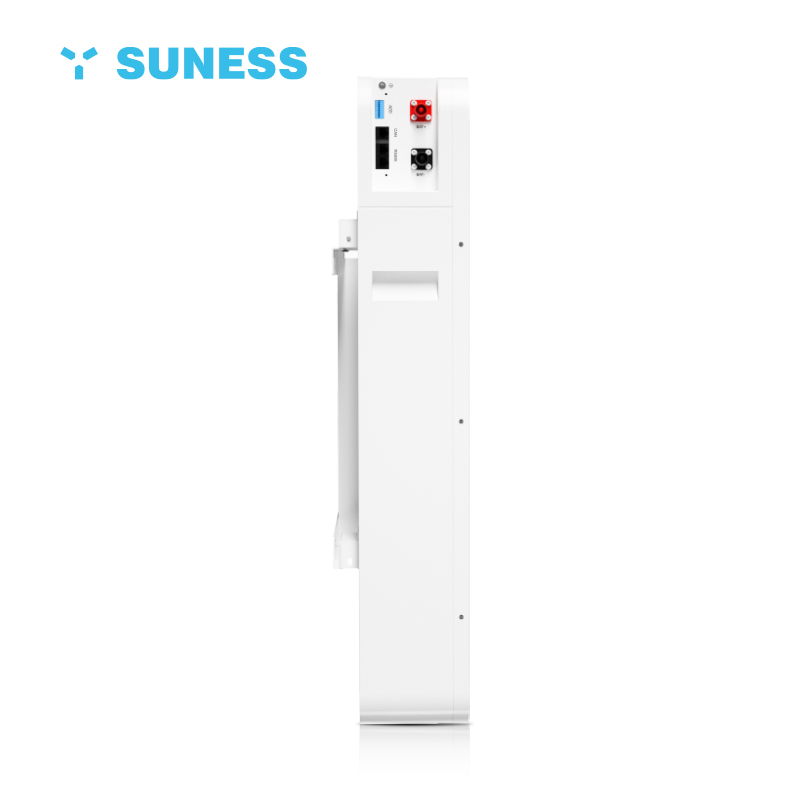

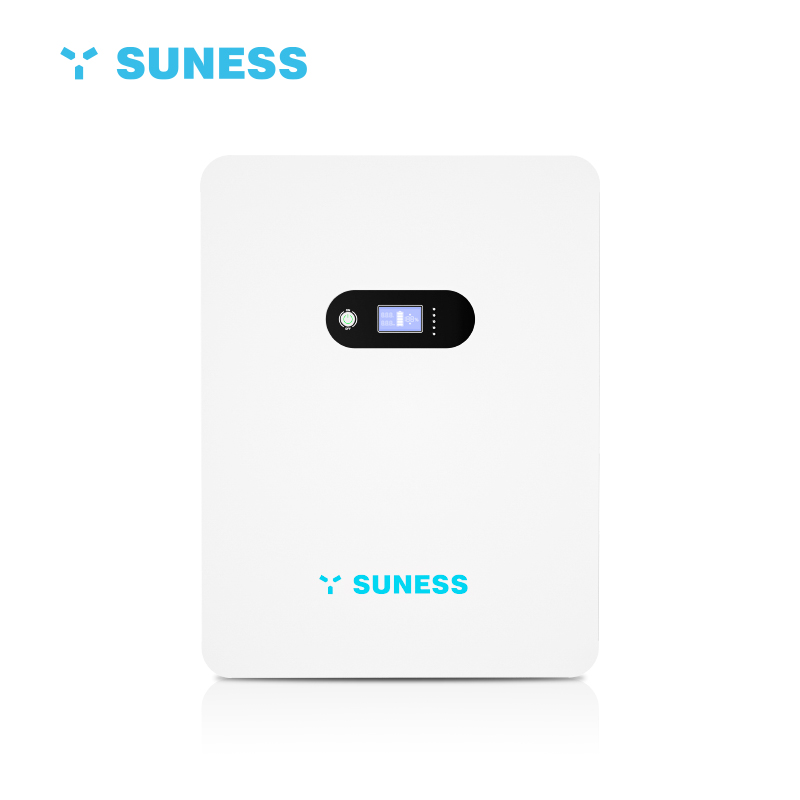

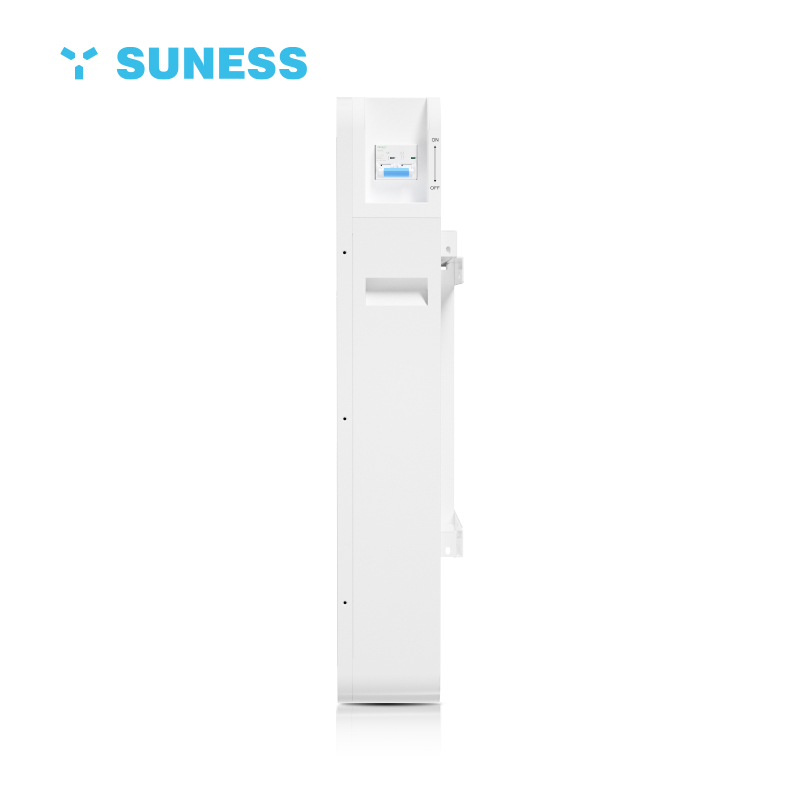

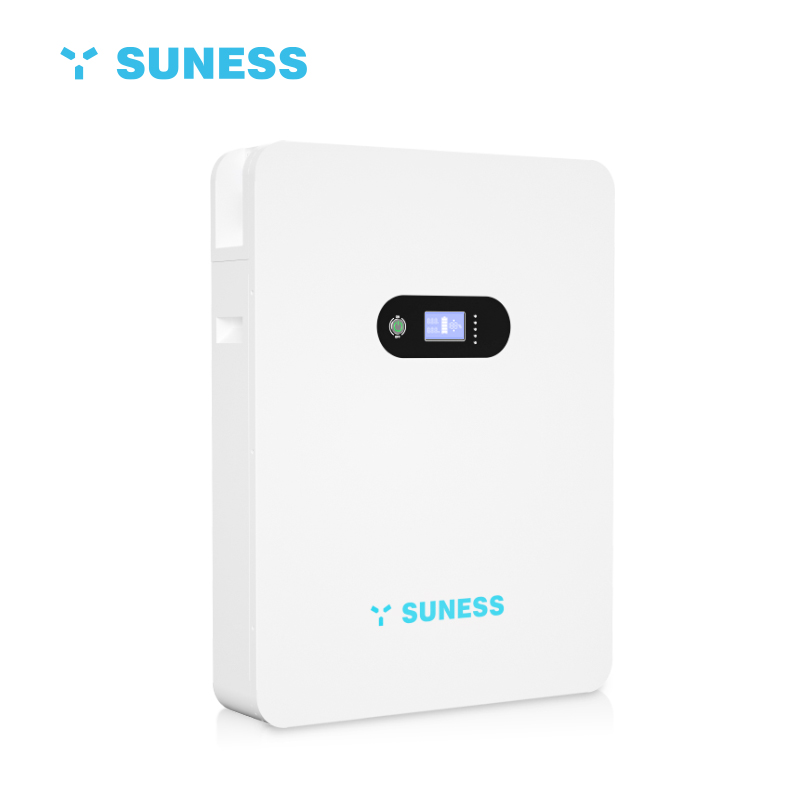

48V 200ah LiFePO4 battery is a wall-mounted lithium battery specially designed for home energy storage solutions.

Here are some key features and benefits:

Usable Capacity: This battery offers a 95% depth of discharge (DOD), which means you can use a higher percentage of its total capacity than other batteries. This stores more energy and makes better use of battery capacity.

High Cycle Life: The cycle life of the battery exceeds 6000 cycles, which means it can be charged and discharged repeatedly for a long time without significant performance degradation. This ensures reliable and consistent performance throughout its lifetime.

Compatibility with Solar Inverters: The battery is compatible with most available solar inverters, allowing it to be easily integrated into existing solar systems. This compatibility allows for seamless operation and efficient use of solar energy for home energy storage.

CAN and RS485 communication: The battery supports CAN and RS485 communication protocols, which can be easily integrated and communicated with other devices in the home energy system. This allows the performance of the battery to be monitored, controlled and optimized in real time.

Safe and convenient: The battery is designed with safety functions such as overcharge protection, overdischarge protection, short circuit protection, and temperature monitoring. Plus, its wall-mount design saves space and is easy to install at home.

Overall, the 48V 200ah LiFePO4 battery is an excellent choice for a home energy storage solution. With its high DOD, long cycle life, compatibility with solar inverters and support for CAN and RS485 communication, it provides reliable and efficient energy storage for residential applications.
