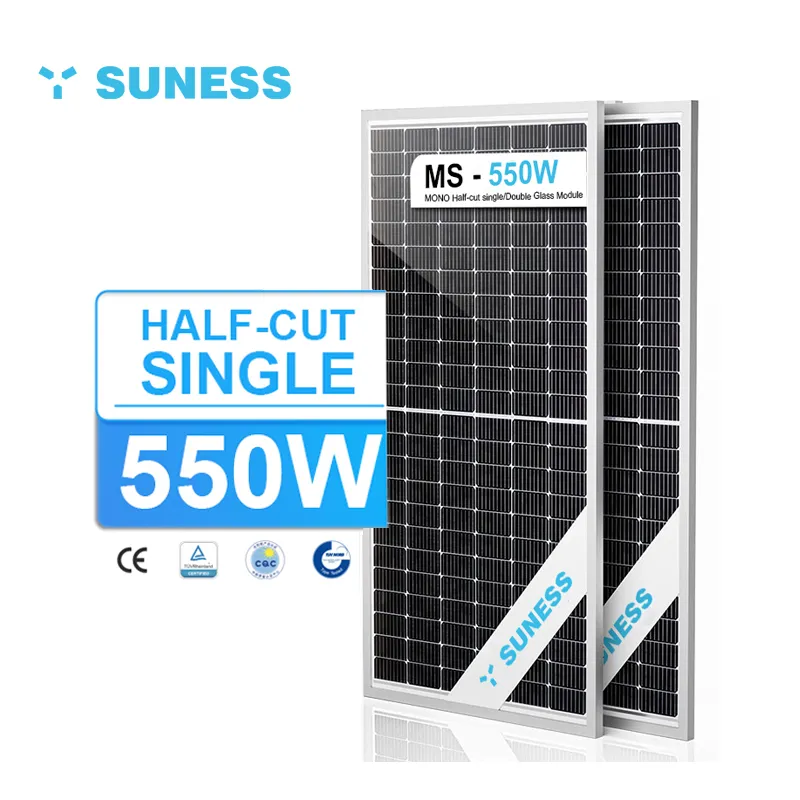

MS-550W 550W|Half-cut|MONO

مطلوب الان تحميل

Introduction Specification MS-550 Detail Company

Introduction

Mono Half-cut single/Double Glass Module

Saving logistics cost Saving cable cost

Saving bracket cost Saving labor cost

10-year warranty for material and technology

25-year linear power output warranty

Module Type	MS-550W
Maximum Power (Pmax/W)	550
Open Circuit Voltage(VocN)	49.95
Short Circuit Current(lsc/A)	14.05
Maximun Power Voltage(VmpN)	41.97
Maximum Power Current(lmp/A)	13.11
Module Efficiency(%)	21.3
Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
ELECTRICAL PARAMETERS	AT NOCT
Maximum Power (Pmax/W)	414
Open Circuit Voltage(VocN)	46.63
Short Circuit Current(lsc/A)	11.17
Maximun Power Voltage(VmpN)	39.31
Maximum Power Current(lmp/A)	10.53
Output Tolerance	0~+5W
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	20A
